Round braiding machine

The round braiding process can be used to give fibres and ropes additional properties. Filaments can be braided on, which make the product more tensile, electrically or thermally conductive and improve the tribological properties. At TITK, various material combinations can be tested in small and medium series for a wide range of applications.

The following options can be realised at TITK:

  • Braiding of rope filaments with a diameter of 0.2 to 3.0 mm
  • Braiding filaments up to 1 mm diameter
  • Various material combinations on 12 bobbins
  • Further investigations and functional tests

Technical equipment

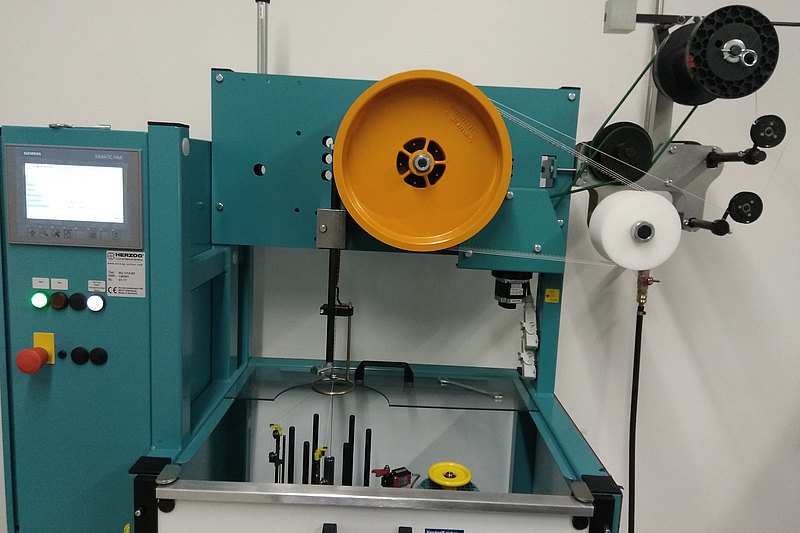

  • Round braiding machine type RU 1/12-80
  • Rewinding machine USP 300 ELTRA
  • driven pay-off type ABA 01
